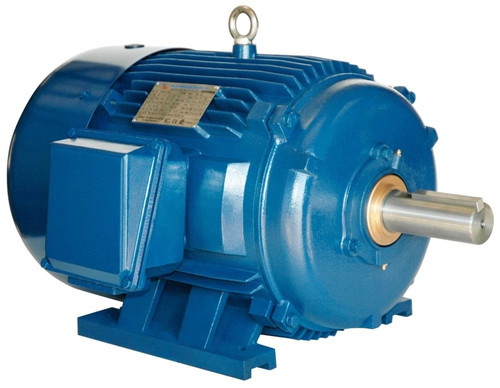

Murphy Electric - PE184T-5-4 North American 5HP 1800RPM 184T TEFC 208-230/460V 3Ph

North American Electric manufactures rugged 5 horsepower cast iron motors at seriously low prices! This high speed unit features heavy duty construction and minimal vibration. Use this general purpose AC motor for pumps, blowers, conveyors, machinery and other commercial and industrial applications. Inverter duty windings (20:1 variable torque; 10:1 constant torque) are safe to use with variable speed drives for speed control.

Totally enclosed motors can withstand dirty or wet environment, and plugs in the body allow you to drain condensation that collects. User friendly lifting provisions help move the equipment. More quality specs include Vacuum Pressure Impregnation for all windings; sealed bearings; cheangeable junction box (F1 or F2 position); and dual drilled feet for mounting options.

Specifications:

Meets or exceeds NEMA Premium Efficiency Requirements defined by NEMA MG-1, Table 12-12

Class I, Div II Groups ABCD, T2B

Dual voltage ratings suitable for part wind start on lower voltage

Single voltage ratings suitable for part wind start at 460V are noted

1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz

Suitable for 575V @ 1.0 Service Factor

Mechanical “V” Seal on drive end

Class F insulation system, class B rise at full load

40Â C ambient continuous duty

Corrosion resistant paint

Stainless steel nameplate and zinc plated hardware

Cast iron frame construction including the conduit box

C-Flange and D-Flange field conversion kits available

IP55 Protection – Terminal box is sealed for IP66 protection

CSA + C + US Certification

ISO 9001 Certification
